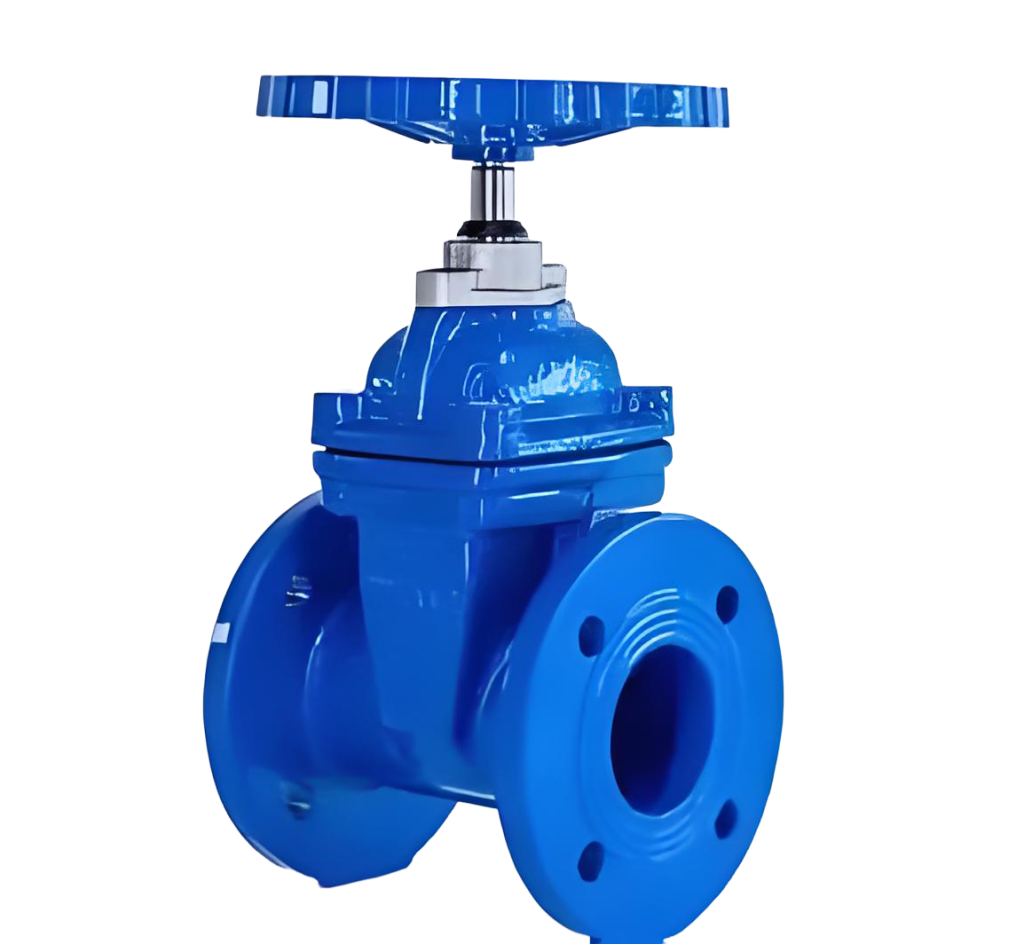

12 in. Flanged Ductile Iron Gate Valve with Handwheel

Product Details

  • Non-rising stem design
  • Ductile iron gate valves offer higher pressure tolerance and are lighter compared to cast iron models
  • Valves feature fusion-bonded epoxy coating on the housings
  • Stainless steel stem, bonnet, and bolts for enhanced durability
  • Resilient wedge with Buna-N encapsulation for reliable performance

Specification

ANSI SpecificationsANSI B16.1 Class 125NSF CertifiedNo
ASTM SpecificationsASTM A-536 65/45/12TypeM200WD16
AWWA SpecificationsAWWA C-509, AWWA C-515UL ListedNo
CoatingEpoxyValve Body Style1 piece
End Connection 1FlangedValve Disc MaterialDuctile Iron
End Connection 2FlangedValve OperatorHandwheel
End ConnectionsFlangedValve Port OpeningFull Port
FM ApprovedNoValve Seat MaterialBuna-N
High Pressure250Valve Size12 in
Length14 inValve StemNon-rising
