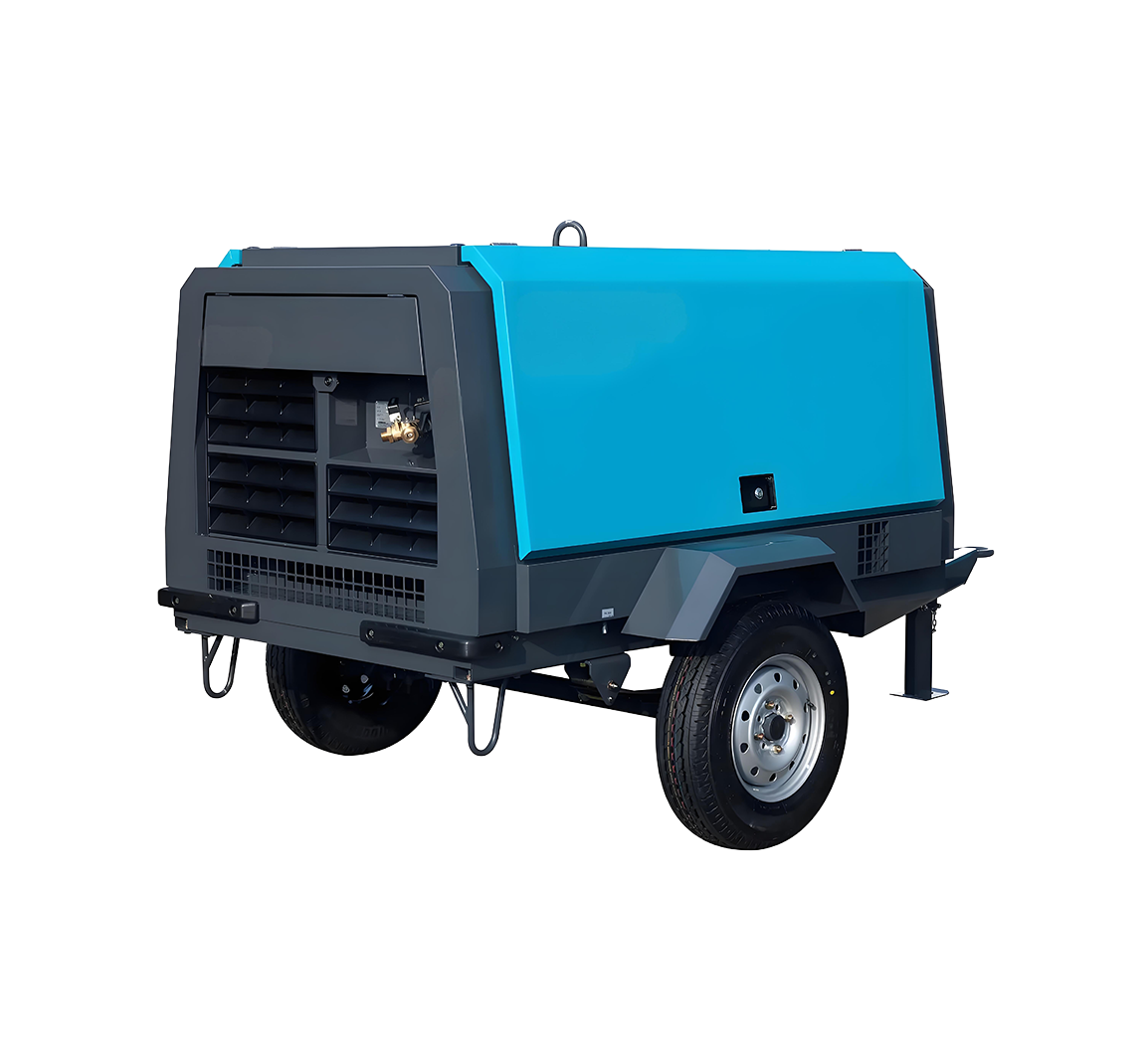

Electric Mobile Screw Air compressor

Advantages of electric mobile screw air compressor:
♦ Truly outdoor design concept, waterproof and dustproof, completely solve your use concerns.
♦ To increase the design of the electrical use design, to ensure that the voltage fluctuation range in 15% can work properly.
♦ In-place air switch protection to ensure the reliable operation of the machine.
♦ And international professional control valve manufacturers, hundreds of thousands of fatigue test verification, to ensure that your need for each gas.
♦ Intelligent controller, simple and clear operating system, real-time detection of each running state of the machine.
♦ All-steel pipeline and flexible connection, to eliminate the pipeline aging burst caused by leakage, reduce the oil pressure loss.
♦ And international professional air filtration, oil filtration and oil-fine separator manufacturers in-depth cooperation to ensure the reliable and stable operation of the machine
♦ The ultra-conventional design of affluence to ensure the normal operation of the machine under harsh operating conditions.
♦ Advanced modular design concept, unique airway design, reflected in the details of the craftsmanship, to ensure that each machine efficient and reliable.

Technical parameters
  Model NO. Exhaust capacity
m³/min
Working pressure
Mpa
Motor Power
KW
Outlet pipe diameter Weight
kg
 Dimensions
mm
Power supply voltage Note
WGE-460L 13 0.8 75 1-G1/2  1-G2 1900 3850×2040×1980 380V/50HZ 4 rounds
WGE-710L 20 0.8 110 1-G3/4 2900 3550×1740×2100
1-G11/2  1-G2
WGE-565H 16 1.3 132 1-G3/4 3000 3550×1740×2100
1-G11/2
1-G2
