Glyc-80 application of high viscosity oil filter truck:

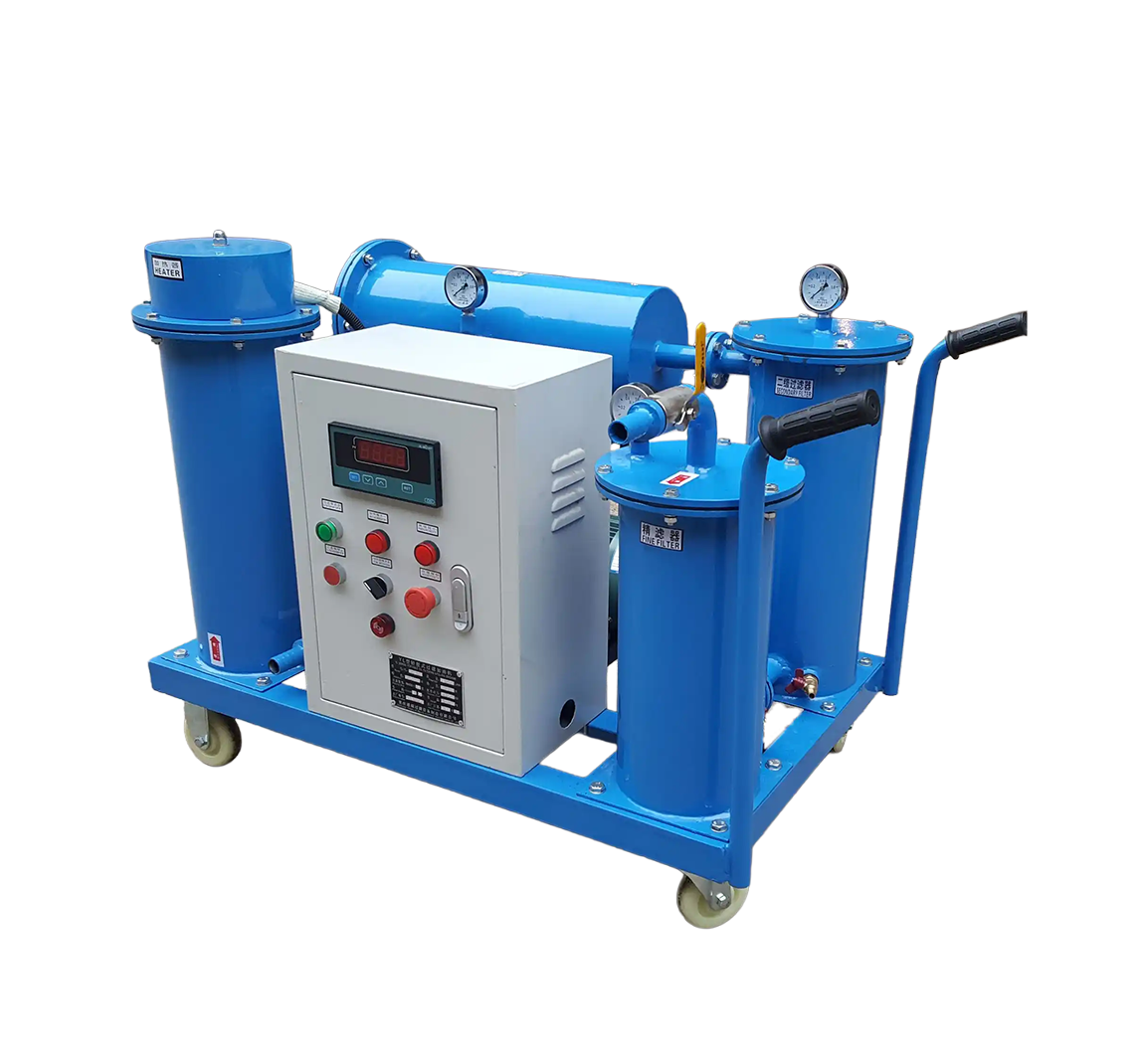

Glyc-80 of high viscosity oil filter vehicle for filtration of high viscosity lubricants
High viscosity lubricating oil filling
Bypass filtration during operation of high viscosity lubricating oil system
Product features
1, the use of special materials as filter element, the filter layer thickness is large, is the general filter element 10 to 15 times, high filtration efficiency, can effectively remove liquid yellow total suspended matter, particles, rust, etc..
2, with a gradual empty path structure. The filter aperture is large outside and small inside, with excellent deep filtration effect.
3, scientific design, compact structure, can withstand high filtering pressure. The unique deep mesh structure enables it to have high pollution absorption energy.
4. The components of the filter element are single, with stable chemical properties and good compatibility with the medium.
Application field
1, textile: polyester melt in the process of drawing purification and uniform filtration, air compressor protection filtration, compressed gas oil and water removal.
2. Electronics and pharmacy: pretreatment and filtration of reverse osmosis water and deionized water, pretreatment and filtration of detergent and glucose.
3. Thermal power and nuclear power: oil purification of gas turbine and boiler lubrication system, speed control system, bypass control system, water supply pump, fan and dust removal system.
4, mechanical processing equipment: paper machinery, mining machinery, injection molding machine and large precision machinery lubrication system and compressed air purification, tobacco processing equipment and spraying equipment dust recovery filtration.
5, Railway internal combustion engine and generator: filtration of lubricating oil and motor oil.
Model: GLYC – 80
Rated flow rate: 80L/min
Coarse filtration accuracy: 100um
Precision: 3, 5, 10, 20, 40um
Medium: high viscosity oil
Working pressure: 1.0mpa
Original pressure loss: 0.2mpa
Differential pressure of filter element replacement: 0.2mpa
Oil viscosity: 10~760cst
Operating temperature: 5~80 degrees
Power: 4 kw
Voltage V: AC 380V three-phase
Weight: 400 kg
Overall dimension: 1500X740X1020
